When using the TX ceiling lifts, the individual being moved remains confident knowing that their transfer from bed to chair, chair to toilet, or chair to bath will be completed safely, comfortably, and with dignity. These lifts are designed to be operated by both professional health care workers and home health care workers who may not have a specific range of skills in health care. Typical home care users may include, but is not limited to, family, friends, neighbors, carers, etc. Focusing on the dignity and well-being of the person being moved, this lift maximizes the amount of care provided to the person.

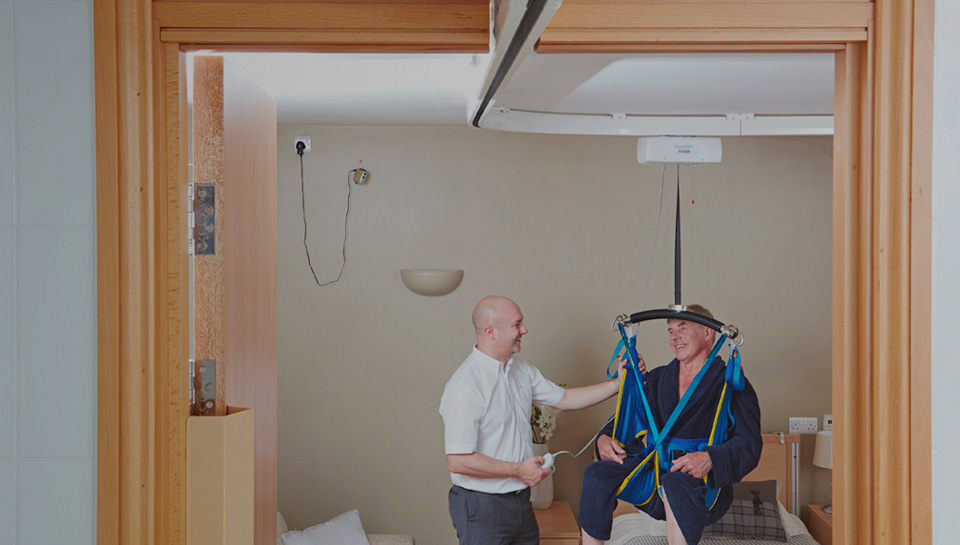

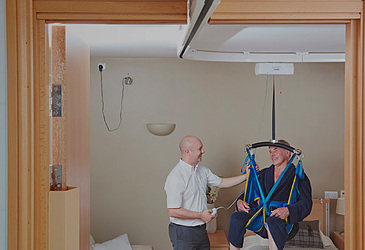

The TX fixed ceiling lifts are designed for use with ceiling tracks and should not be used for any other application. It has the ability to raise up an individual from one location, such as a bed, move the individual along the track to another location, and finally lower the individual, such as into a chair or a bath.

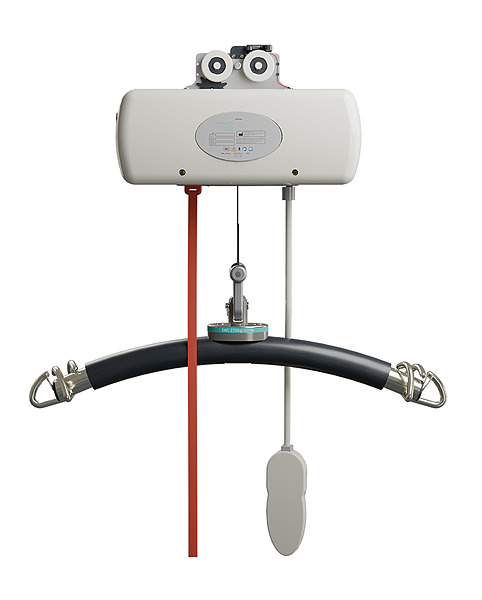

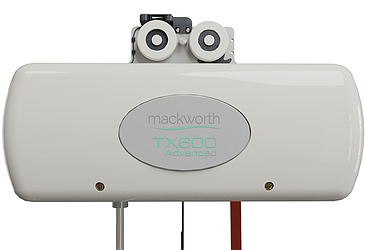

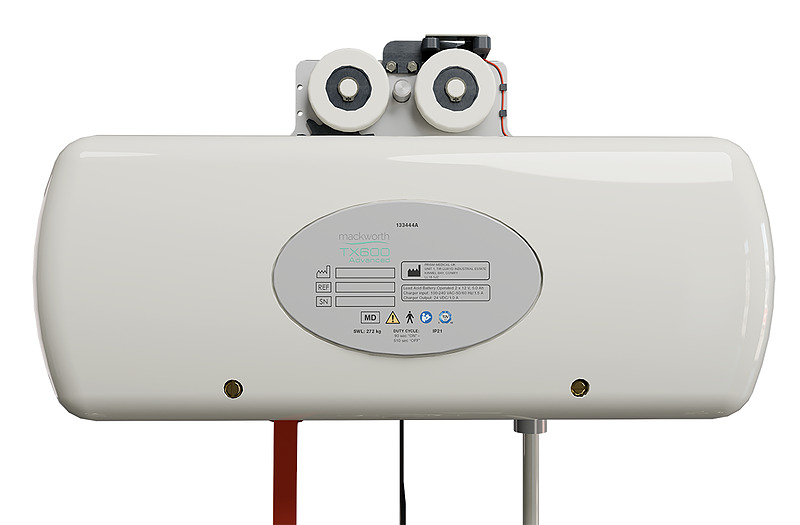

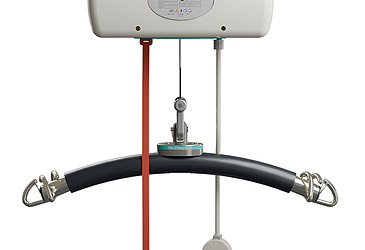

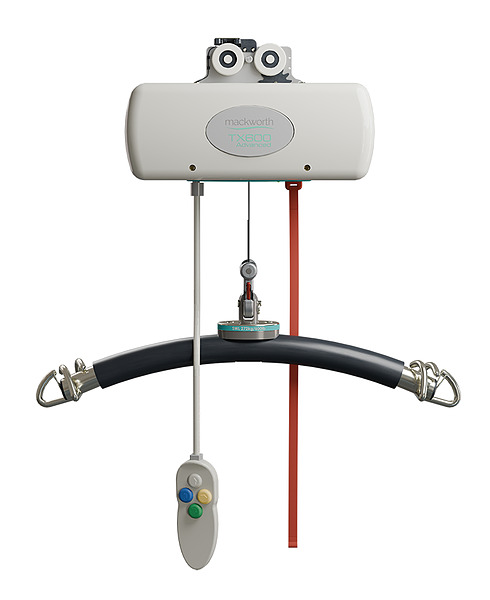

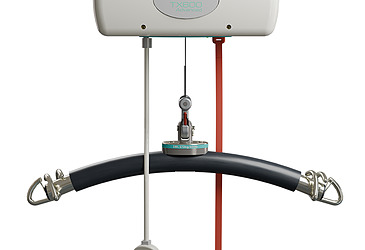

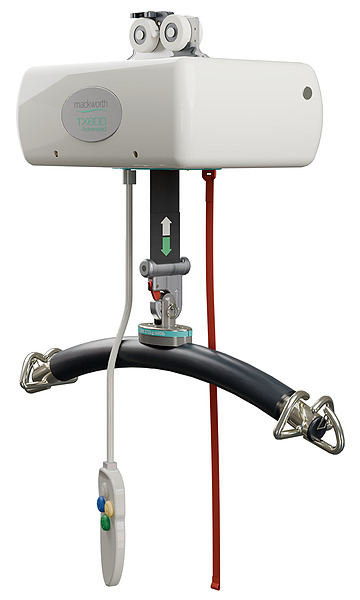

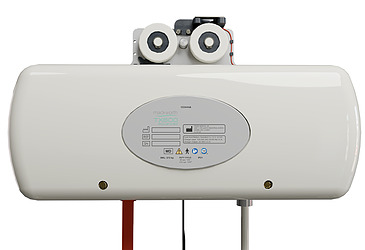

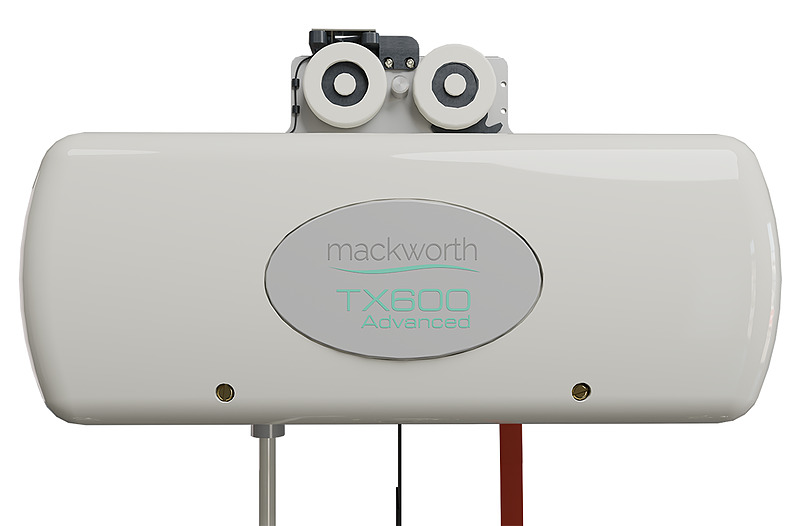

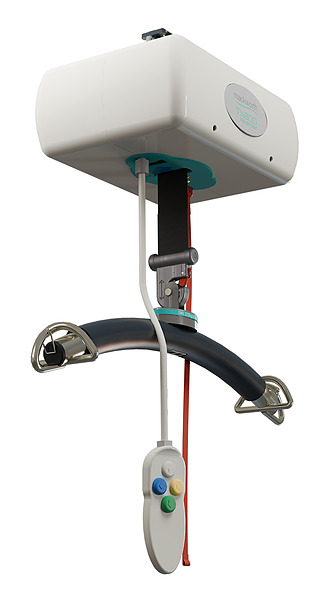

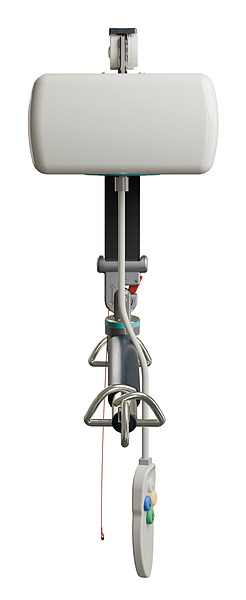

Mackworth TX600
Our low-profile, fixed ceiling track lifts provide a greater lifting height than any other lift option and are safe, practical and always there when needed.
The TX600 makes it possible to move mobility impaired individuals with minimal strain or risk to the caregiver, while providing complete safety, dignity and comfort for the client.
The TX600 ceiling lift should be used in conjunction with a suitable fixed ceiling track system and a moving and handling sling.
- Features
Product Features
- Low Profile - Low profile ceiling lift with 78.74” (2000mm) lifting range
- Wet Rooms & Bathrooms - Ideal for use in wet rooms and bathrooms

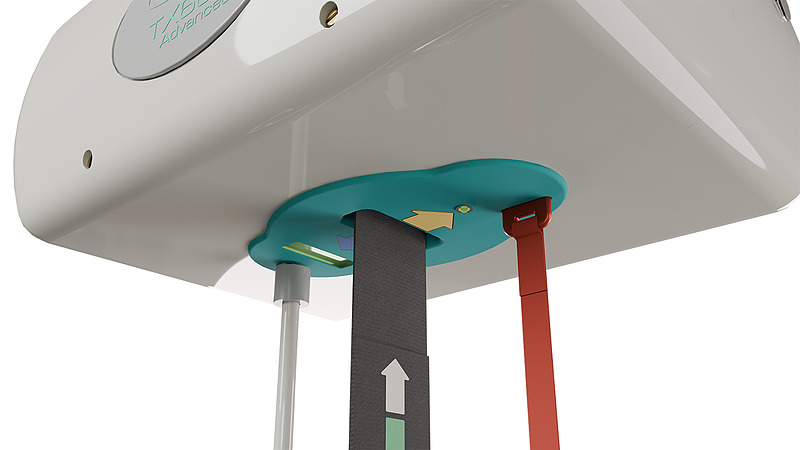

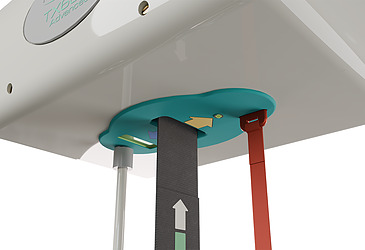

- Smooth High Torque Motor - Smooth running lifting tape and high torque motor, with powered traverse option available
- 600lb - Capable of transferring patients up to 600lb

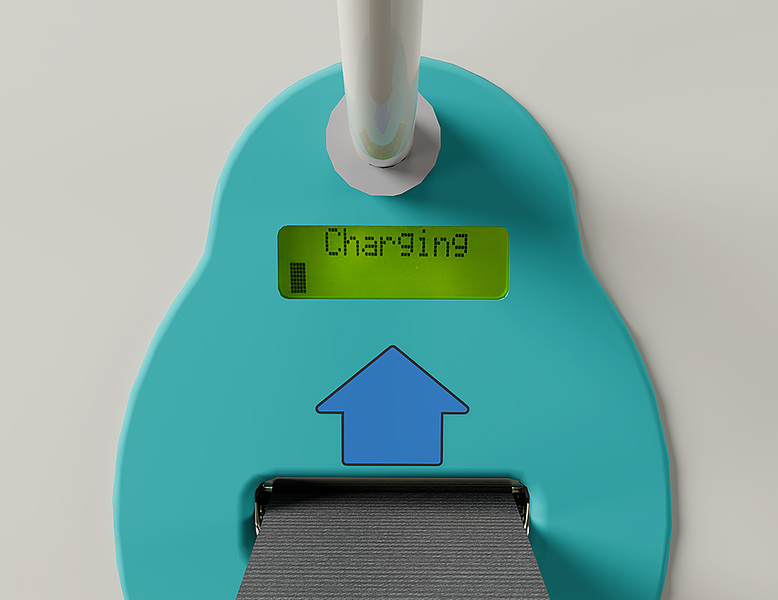

- Discreet Design - Unobtrusive design which doesn’t take up floor space or cause trip hazards, and is complete with in-track charging point
- Specifications

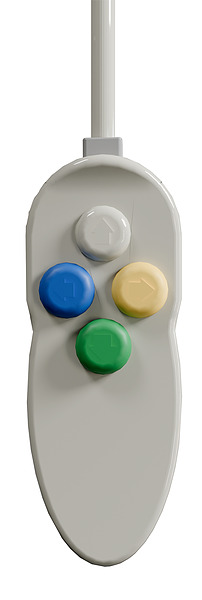

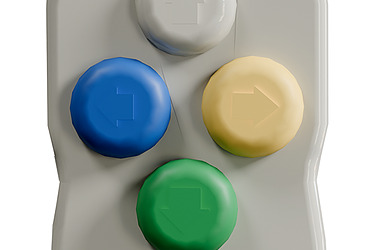

TX600 Specifications Lift Motor: 24 VDC Traverse Motor (optional at time of purchase): 24 VDC Charger Input: 100-240V AC 50/60Hz 1.5A Charger Output: 24 VDC/1.0 A Batteries: 24 VDC (2x 12 VDC) 5.0 Ah (SLA) Lift Case: Flame Retardant ABS Lift Case Degree of Protection: IP21 Handset Degree of Protection: IP67 Operation: Handset (Pneumatic) Sound Level: 54 dB(A) Traverse Speed (SWL) 1, 2, 3, 4: 1.58 “/s (40.12 mm/s), 3.87 “/s (98.24 mm/s), 5.90 “/s (150.00 mm/s), 7.75 “/s (196.88 mm/s) Traverse Speed (No Weight) 1, 2, 3, 4: 1.79 “/s (45.48 mm/s), 4.11 “/s (104.34 mm/s), 6.23 “/s (158.32 mm/s), 7.87 “/s (200.00 mm/s) Traverse Stopping Distances (SWL) 1, 2, 3, 4: 0.24″ (6 mm), 1.22″ (31 mm), 2.28″ (58 mm), 3.31″ (84 mm) Traverse Stopping Distances (No Weight) 1, 2, 3, 4: 0.24″ (6 mm), 1.22″ (31 mm), 2.36″ (60 mm), 3.50″ (89 mm) Traverse Duty Cycle: 25% use, 75% rest (90 seconds use, 270 seconds rest) Lifting Speed (SWL): 1.16 “/s (29.52 mm/s) Lifting Speed (No Weight): 2.54 “/s (64.52 mm/s) Lowering Speed (SWL): 2.14 “/s (54.48 mm/s) Lowering Speed (No Weight): 2.39 “/s (60.75 mm/s) Stopping Distances Up (SWL): 0.39″ (10 mm) Stopping Distances Up (No Weight): 0.94″ (24 mm) Stopping Distances Down (SWL): 1.54″ (39 mm) Stopping Distance Down (No Weight): 1.30″ (33 mm) Raising/Lowering Duty Cycle: 15% use, 85% rest (90 seconds use, 510 seconds rest) Emergency Down Stopping Distance (SWL): 1.54″ (39 mm) Emergency Down Stopping Distance (No Weight): 1.38″ (35 mm) Battery Capacity for Raising/Lowering (SWL): 35 Lifts (Top 500 mm of Lift Tape) Battery Capacity for Raising/Lowering (200 kg / 440 lbs): 60 Lifts (Top 500 mm of Lift Tape) Battery Capacity for Raising/Lowering (100 kg / 220 lbs): 120 Lifts (Top 500 mm of Lift Tape) - Manuals
- Video / FAQ Animations

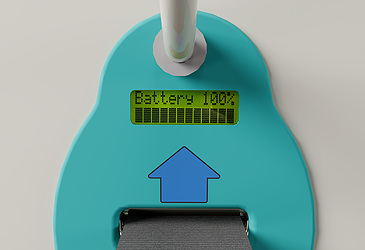

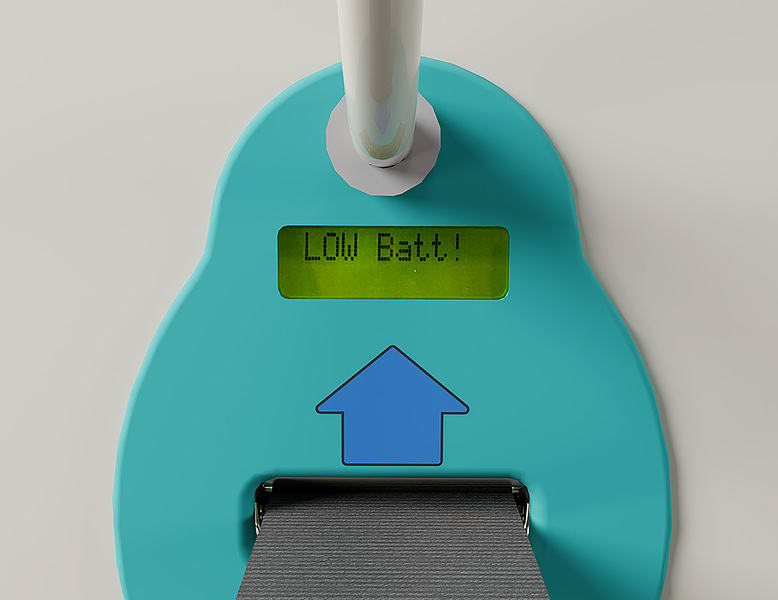

How to Change the Batteries
How to Change the Lift Tape
