Mackworth Easy Fit 440

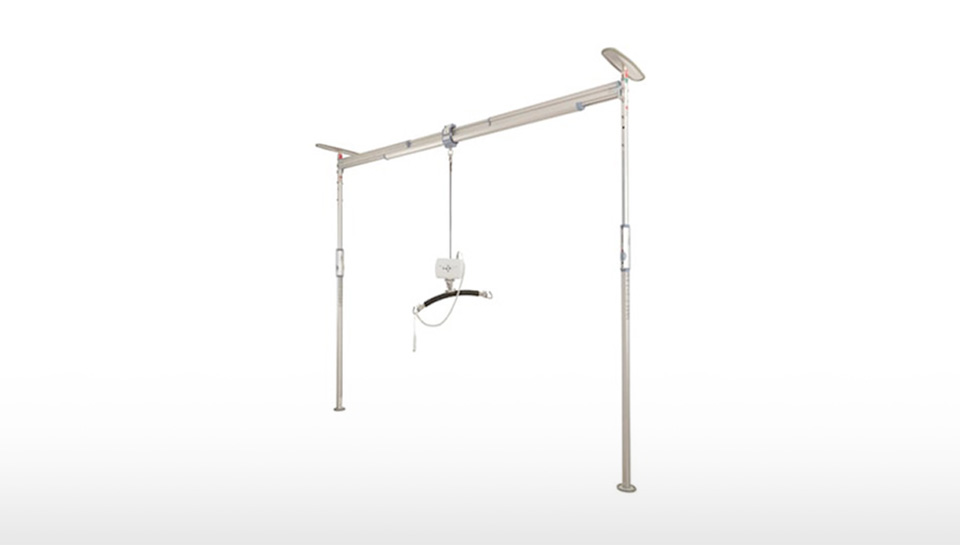

The Mackworth Easy Fit 440 Gantry System provides an alternative solution where a fixed ceiling track is not a suitable option. Relying on a "pressure fit action", the Easy Fit 440 secures the gantry between the floor and a structurally suitable ceiling at a maximum height of 7 to 10 feet (2.1-2.8 m)
When used in conjunction with a portable lift, such as the Mackworth CP440P, the system is perfect for home care, allowing users remain in their own homes for longer.
A cost effective solution; simple to assemble without tools, Easy Fit 440 has a safe working load of 440 lbs (200 kg) and caters for the requirements of both the patient and caregiver, providing a safe and dignified experience for both.
- Features
- Greater Independence at Home - Allows end users to stay in their own home. Providing a safe, dignified, and comfortable transfer for both end user and caregiver.
- No Structural Alterations - No structural alterations are required to the room or ceiling.
- Easy Assembly - Tool-free assembly may be completed by one person (two person assembly is recommended).
- Lift Capacity - Transfer Patients up to 440 lbs (200 kg)
- Adjustable Length - Can be assembled to suit a wide range of applications and length is adjustable.
- Specifications
Easy Fit 440 Specifications User Weight Limit (Max Rated Load): 440 lbs (200 kg) Frame Construction Material: Aluminum Minimum Useable Track Length: 107.32" (2,726 mm) Minimum Ceiling Height: 80.55” (2046 mm) Maximum Ceiling Height: 108.27” (2750 mm) Total Weight (Boxed): 59.7 lbs (27.1 kg) Unit Weight (with Trolley) 63.1 lbs (24.1 kg) - Manuals
